External editor - line number argument setup [SOLVE]

Wed May 27, 2009 6:32 am

I'm using an external editor (Notepad++) with EWARM,
with the setup

type: Command Line
editor: path/notepad++.exe
Arguments: $FILE_PATH$

I'm looking for another argument which could indicate the line number
I try some like $LINE$, $LINE_NUM$, $LINE_NUMBER$,...no one is working

I made many research with the two I knew $FILE_PATH$ and $PROJ_DIR$ , but I found nothing.

If someone could helpme for this.

it's in IAR Embedded Workbench IDE User guide p336
$CUR_DIR$ Current directory
$CUR_LINE$ Current line
$CONFIG_NAME$ The name of the current build configuration, for example Debug or Release.
$EW_DIR$ Top directory of IAR Embedded Workbench, for example c:\program files\iar systems\embedded workbench5.n
$EXE_DIR$ Directory for executable output
$FILE_BNAME$ Filename without extension
$FILE_BPATH$ Full path without extension
$FILE_DIR$ Directory of active file, no filename
$FILE_FNAME$ Filename of active file without path
$FILE_PATH$ Full path of active file (in Editor, Project, or Message window)
$LIST_DIR$ Directory for list output
$OBJ_DIR$ Directory for object output
$PROJ_DIR$ Project directory
$PROJ_FNAME$ Project file name without path
$PROJ_PATH$ Full path of project file
$TARGET_DIR$ Directory of primary output file
$TARGET_BNAME$ Filename without path of primary output file and without extension
$TARGET_BPATH$ Full path of primary output file without extension
$TARGET_FNAME$ Filename without path of primary output file
$TARGET_PATH$ Full path of primary output file
$TOOLKIT_DIR$ Directory of the active product, for example c:\program files\iar systems\embedded workbench 5.n\arm
$_ENVVAR_$ The environment variable ENVVAR. Any name within $_ and _$ will be expanded to that system environment variable.
And for the very good and free editor notepad++http://notepad-plus.sourceforge.net/fr/site.htm

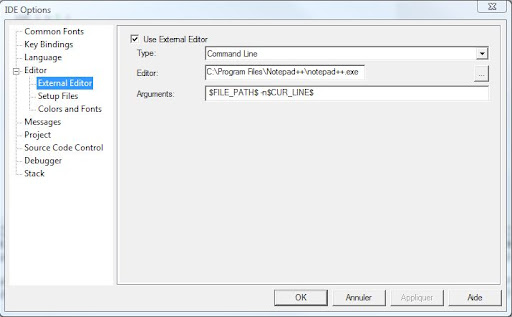

in EWARM-Tools-Options...
